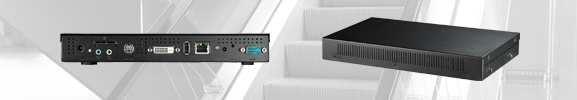

Optoma Signshow D500 Digital Signage Media Player

The SignShow D5000 advanced digital signage player can display up to six alternate media contents simultaneously plus a background graphical image.

The content can be a variety of live video (streaming), graphics, and message tickers. The player also has fully network capability to allow remote management content update, scheduling, and reporting.

Program Creator Software enables users to easily design, preview, publish and manage the signage message. The D5000 is ideal for businesses looking for an alternative to PC-based signage systems.

With a low-power, fan less design and a compact size, the D5000 makes an immensely powerful solution that is easy to mount and place in most signage deployments.

SignShow D5000- Advanced Digital Signage High Definition Media Player

Flexibility: The SignShow D5000 advanced digital signage player can display up to 6 multiple media zones simultaneously in addition to a background graphic.Zones can be a combination of live video (streaming), graphic, clock and time, and message tickers.

Tickers can also be horizontal or vertical, left to right or right to left scrolling and even static. The player also has full network capability to allow remote management content update, scheduling and reporting.
Full player and software security login is provided both at player level and content upload so you have full control of your signage. The D5000 supports FTP upload for overnight uploads and also local LAN selectable load balance for larger content uploads.

With Wireless setup built into the firmware users just need a low cost USB Wireless Dongle (Information on the website) to get full wireless upload and control plus live RSS and Weather feeds. This makes the D5000 far more flexible for kiosks and other digital signage installs that cannot get access to a wired LAN network or running cabling across a building.

Simplicity: Program Creator (InfoSAP) Content Creation Software that’s bundle with the D5000 enables users to easily design, preview, publish and manage the signage message. With touch button preview you see your design in an instant and layout preview helps you design the perfect message.

Green: With low power fanless design and the compact size, the D5000 makes an immensely powerful solution that is easy to mount and place in most signage deployments. The D5000 is ideal for businesses looking for an alternative to PC based signage systems.

Media Capabilities Video Supports MPEG 1/2/4, WMV, H.264, VC-1 and Xvid formats. Audio Plays MP3, WMA, AC-3 and AAC. Graphics Displays various BMP, PNG and JPEG images Scrolling Tickers Variable scrolling speed, direction and position. Single and/or multiple lines. Web-Support Player control by Web Page High Definition Up to 1080p output. Fast Deployment With its user-friendly Windows interface, InfoSAP makes life easy for users to utilise audio, video image and tickers and combine them to play simultaneously on the same screen. Low Power Design With a low-power fanless design and the compact size, the D5000 makes an immensely powerful solution. Multimedia The D5000 advanced digital signage player can display up to 6 multimedia zones simultaneously plus a background graphic Networkable Upload by LAN or Wireless and direct by USB 2.0 (mass storage class only).

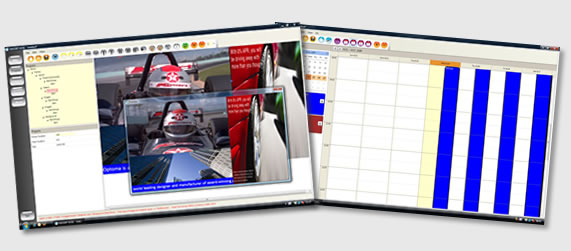

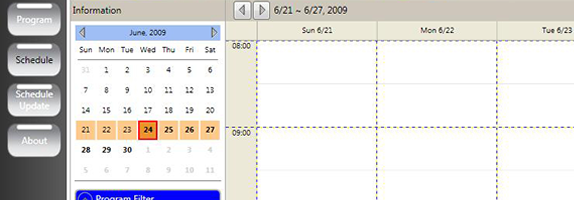

InfoSAP Program Creator InfoSAP Program Creator is a Windows application which is used to design program contents for the D5000 signage player. InfoSAP supports various audio, video and image file formats to meet todays business technology environment. With its user-friendly drag and drop Windows (XP, Visa, and Windows 7) interface, InfoSAP makes life easy to use multiple audio, video, graphics and tickers and combine them to play simultaneously on the same screen. Users can pick from multiple templates or design their own and save for later use. Instant touch button preview and on screen layout preview you’re in control of your design before uploading “See before commit”. InfoSAP also provides sophisticated content management which makes broadcasting information or digital advertising extremely simple. Windows XP, Vista 32/64bit and Windows 7 Full Touch Button Preview Mode Drag and Drop - Video, Graphics and Sound files Ticker (left to right, right to left, top to bottom and Static) Design or pick from predefined templates See before Commit Preview Mode Create layouts quickly and easily using a drag and drop interface. Specify a program schedule using the powerful full function on-screen calendar.

Display Layouts The D5000 can display up to six alternative media zones simultaneously plus a background graphic. The images below are for information purposes only. With so many possibilities of horizontal or vertical tickers that can be scrolling left to right, right to left, top to bottom or bottom to top and even static. Two graphic images, two videos and time/date or date or even just a clock plus a background you can say the possibilities are endless. Horizontal Signage Vertical Signage

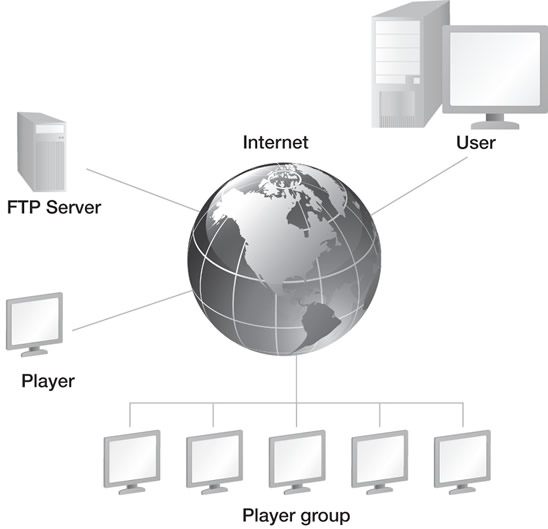

Connection Options
